Description

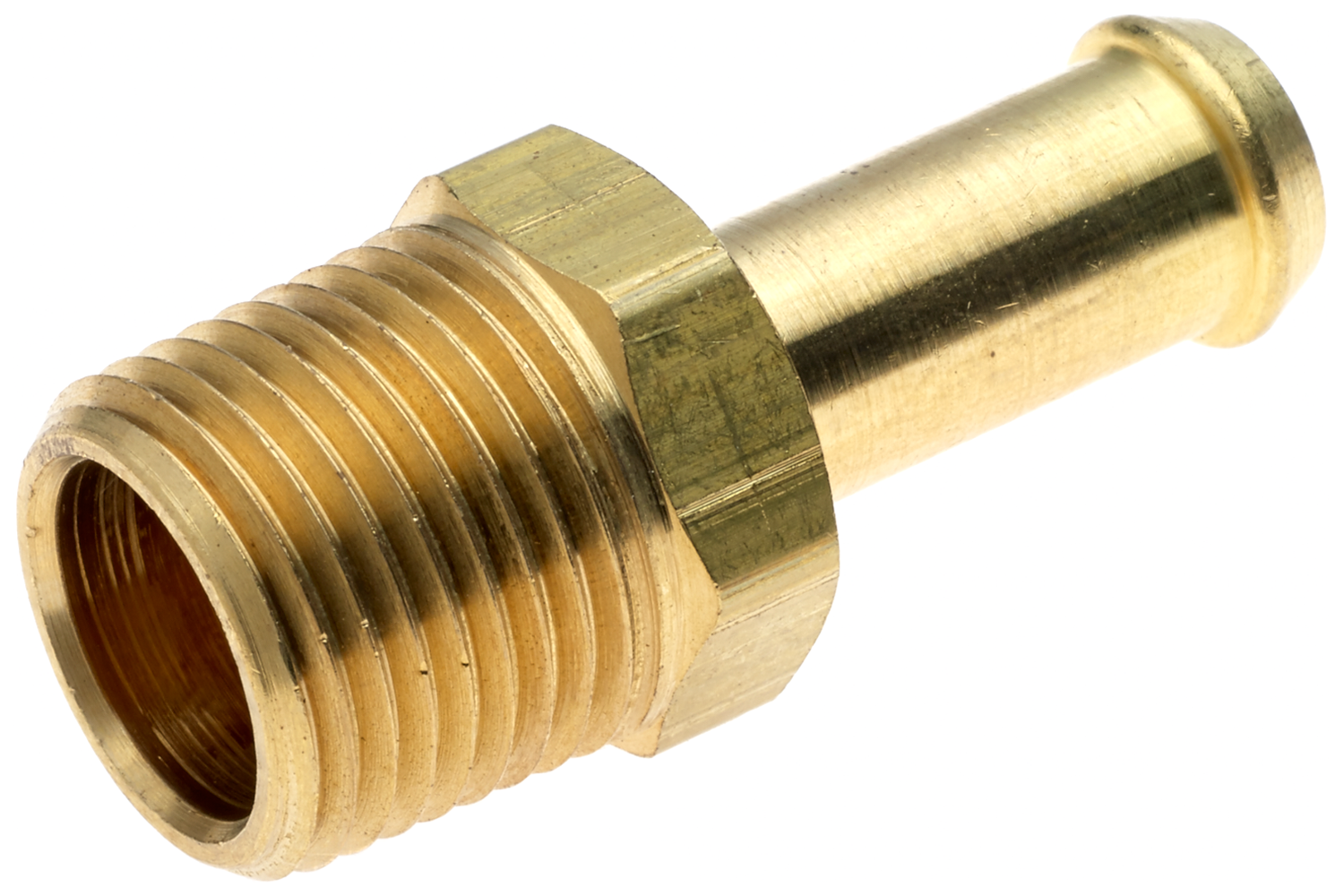

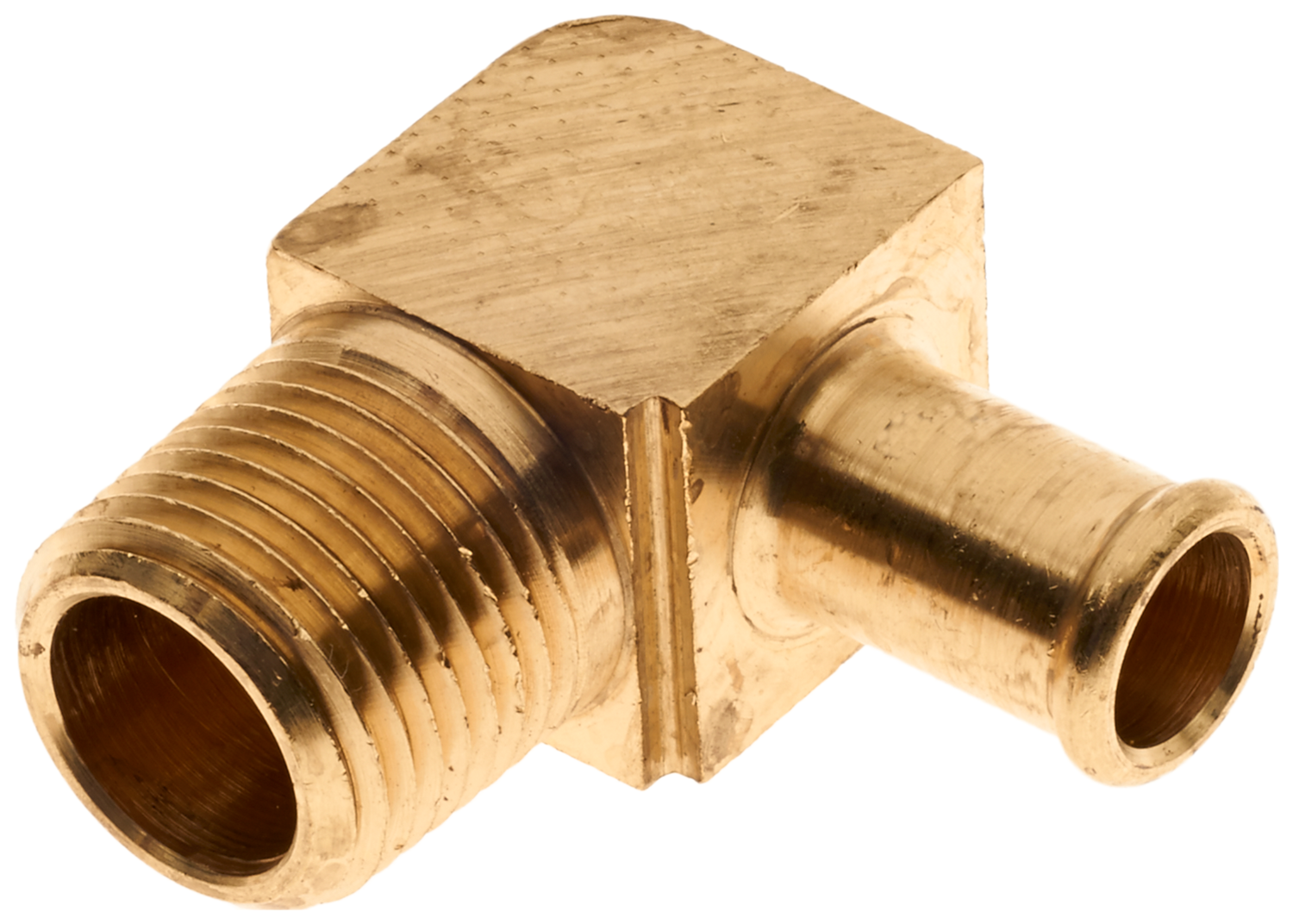

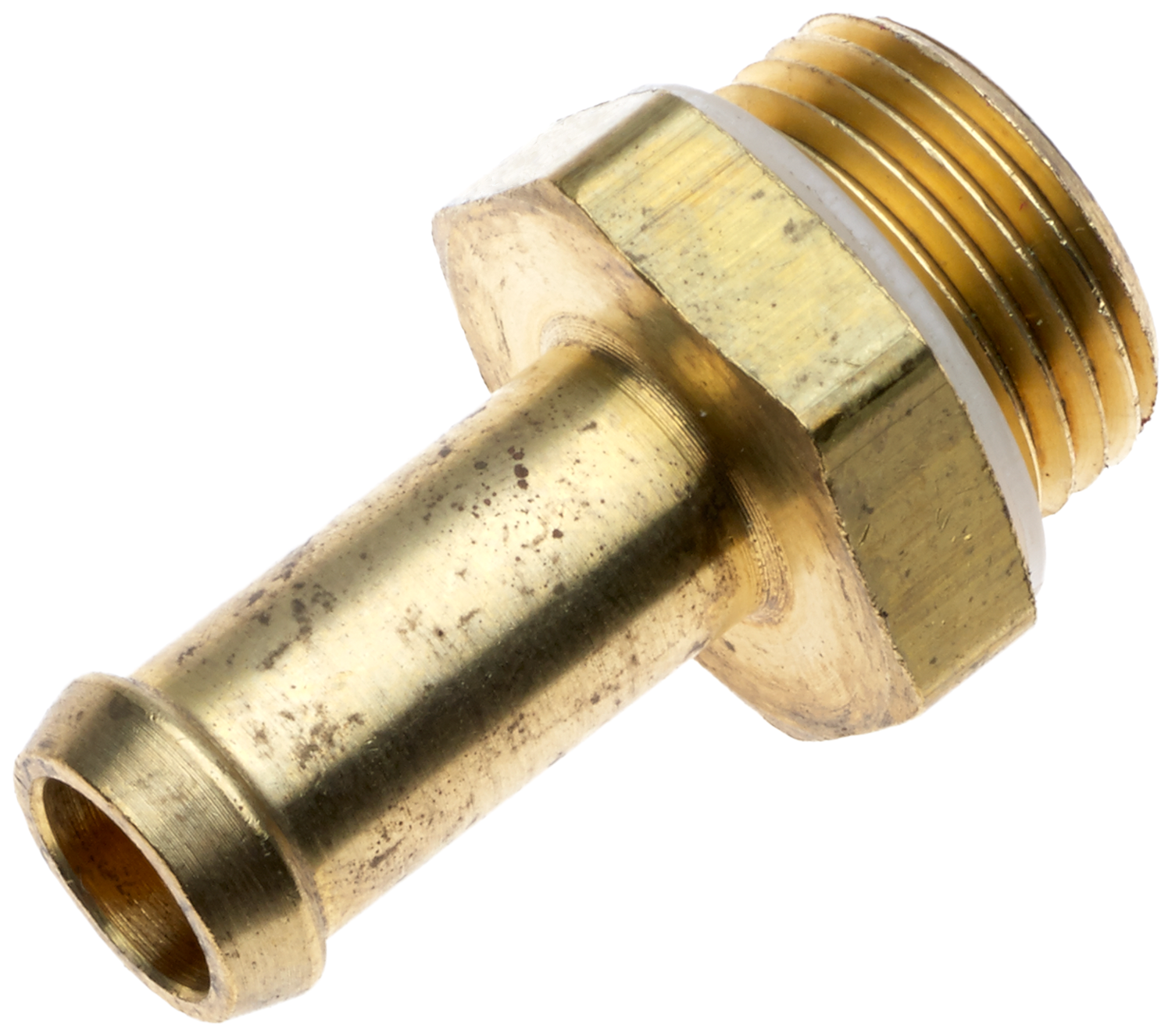

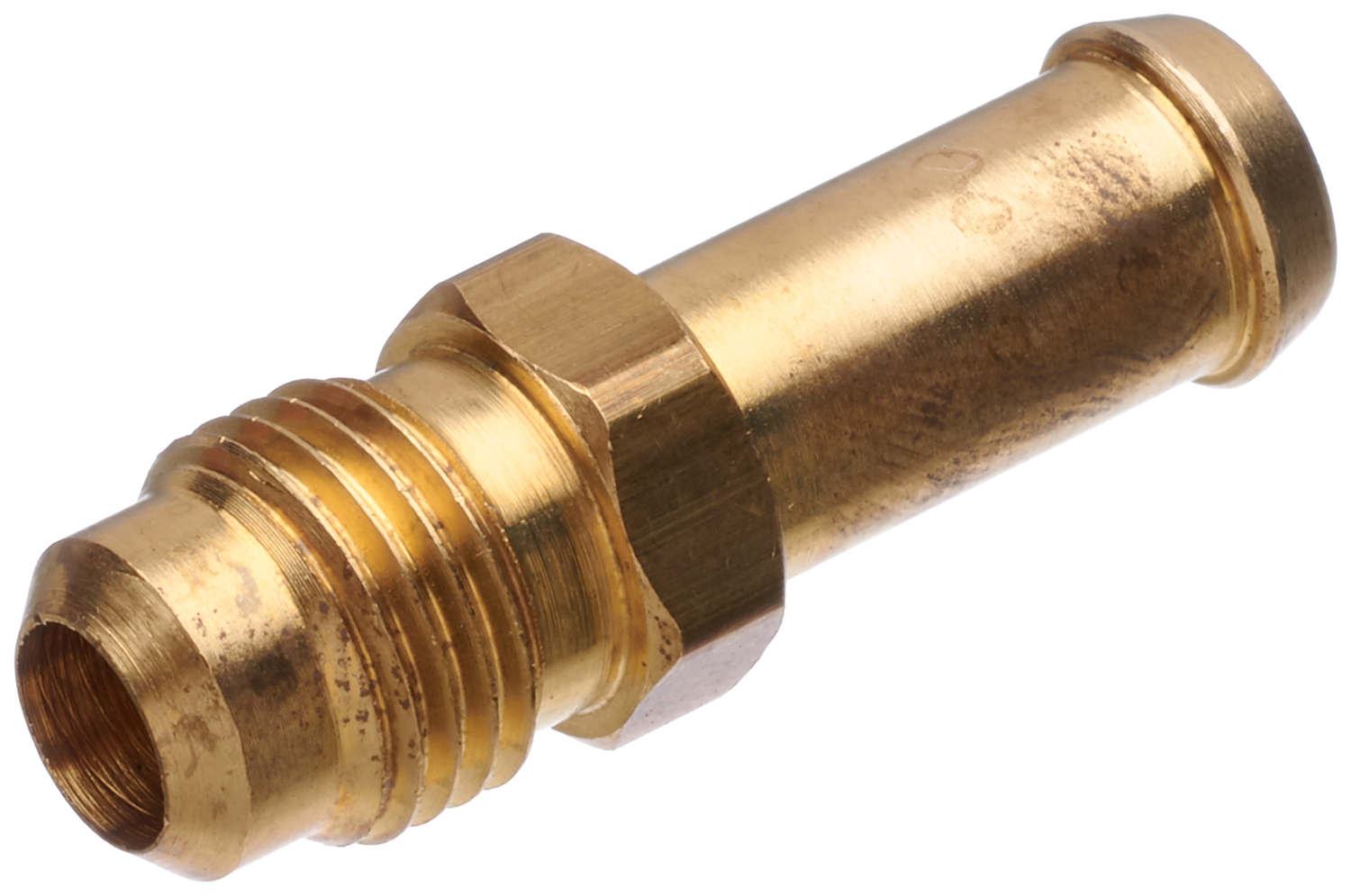

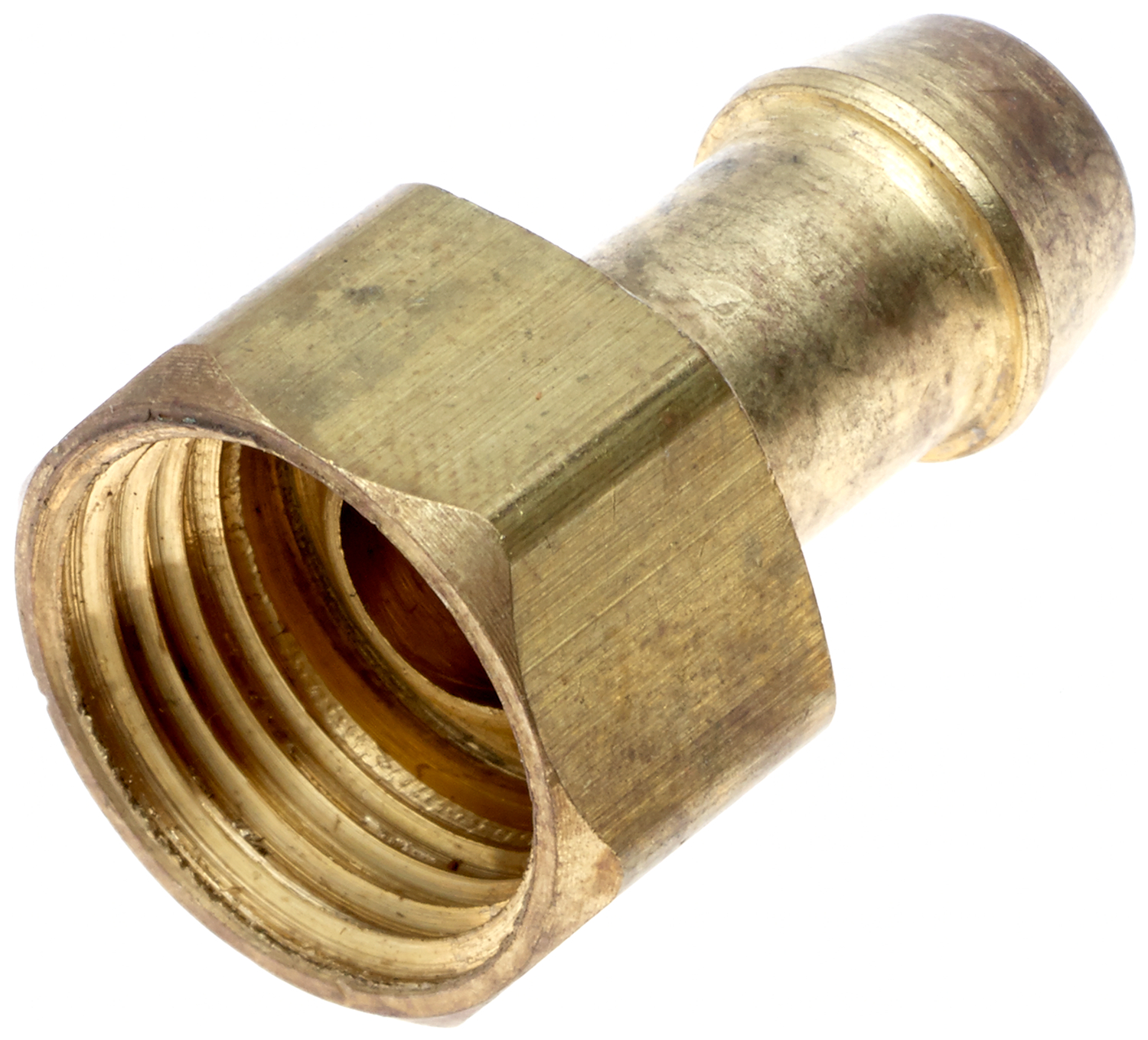

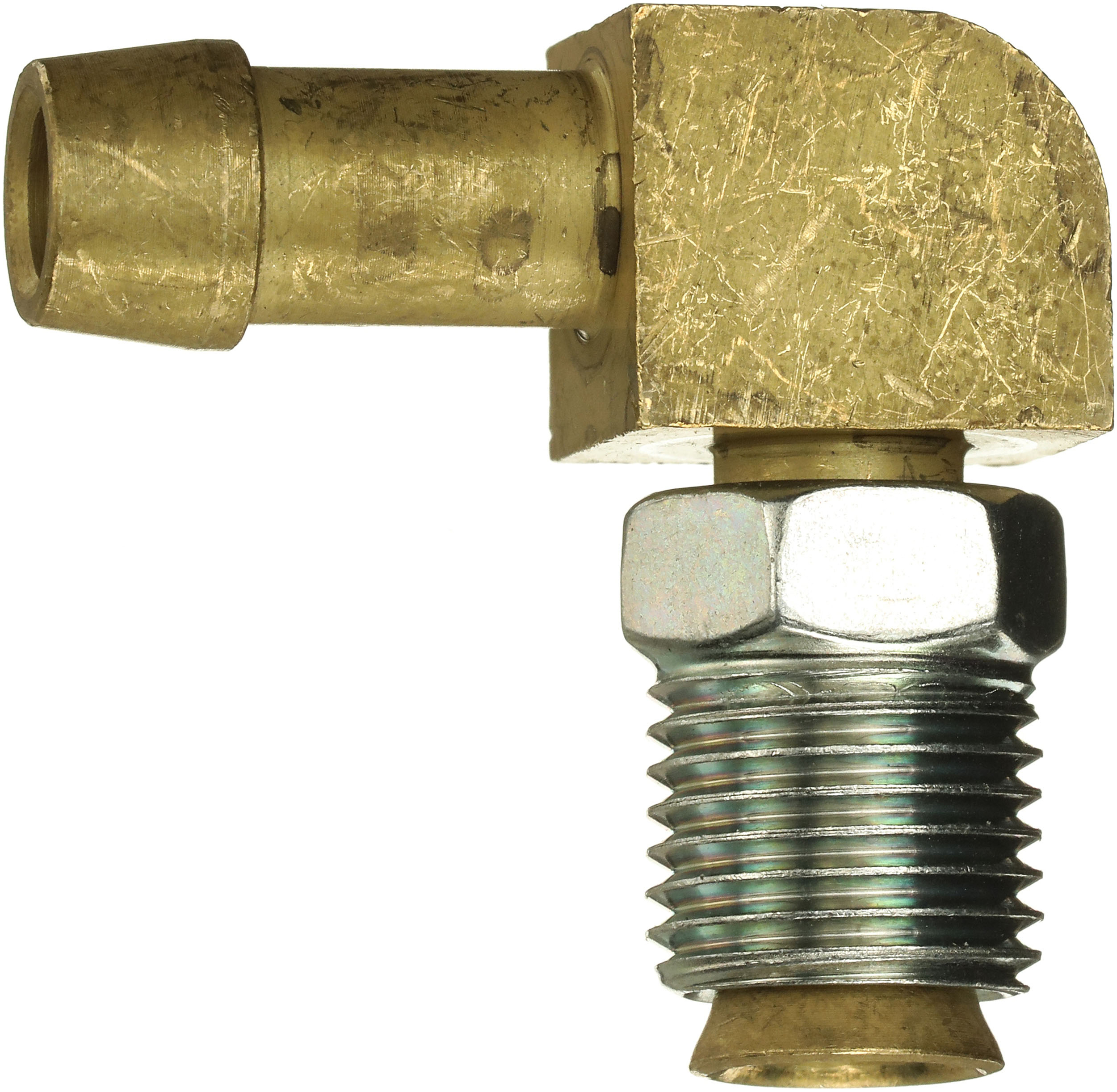

# Single Bead Couplings
Recommended for low pressure fuel, oil, compressed air and water lines used in small engines, vacuum advance and evaporative emission control systems.
– Use with low pressure hose such as multi-purpose or general purpose hose.
– Single bead fittings are quick connecting, field attachable and reusable.
– Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C).
Additional information
| T1 Thread (in) | 1/8-27 |
|---|---|
| A1 Outside Diameter (in) | 0.1875 |
| A1 Outside Diameter (mm) | 4.7 |
| L Length (in) | 1.26 |
| L Length (mm) | 32 |
| L (in) | 1.26 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.02 |
| Angle. | 90 |
